High-performance drum melters – your benefits!

SM Klebetechnik drum melters for the high-precision application of hot melt adhesives, butyl and bitumen

Are you looking for drum melters offering above-average melting performance? For reliable systems that are easy to maintain and are energy- and cost-efficient? The SM Klebetechnik drum melters allow you to achieve extremely cost-efficient production, as only a maximum of 4 kg of residual material remains in the drum. This saves you an average of €30 per drum and as much as €1,000 per day!

Would you like to find out more about the potential savings from more efficient drum consumption? Then click here:

SM Klebetechnik, your expert in adhesive application technology offers you drum melters for hot melt adhesives, butyl and bitumen – assembled for you with the utmost precision at our factory in Germany. The drum melters feature above-average melting and conveying performance and low-residue drum consumption:

  • Drum melters for hot melt adhesives in 20 to 200-litre drums
  • Tandem and single drum melters for butyl/bitumen in 20 and 200-litre drums

  • Heated drum-emptying systems with a pneumatic scoop piston pump for handling pasty materials such as greases, waxes or resins

We engineer, build and program drum melters with our own proprietary software (Siemens PLC) for tandem, triple and fourfold operations for large quantities of adhesive material, e.g. for feeding roller application laminating systems for highly effective and uninterrupted production.

Feel free to contact us at any time!



SM Klebetechnik Vertriebs GmbH
Otto-Hahn-Str. 19a
D-52525 Heinsberg

Find out now …

the industries in which SM Klebetechnik drum melters are used

how the melting systems are specifically customised to meet customers’ requirements

the advantages the SM Klebetechnik drum melters offer

how your company can benefit from drum melters

what characterises good drum melters

why our drum melters are the right choice for you

what practical services SM Klebetechnik offers

SM Klebetechnik drum melters – benefits at a glance

  • For use in different sectors
  • In some cases seal-free (internationally unique)
  • Automatic aeration/de-aeration sensor for automatic ventilation

  • Precise fill level thanks to distance measuring system

  • Best melting performance on the market (frequently >200kg/h)
  • The lowest amount of residual material remaining in the drum compared to market peers (max. 1.5 % residual material in the drum)
  • Compact design, designer control cabinets, LED status light
  • Ventilation valve with needle seat to prevent clogging, especially with reactive hotmelts
  • Suitable for various drum sizes and shapes, e.g. steel, cardboard and beaded drums

  • Customisable to meet specific customer requirements

  • High safety standards (e.g. enclosures, extraction ring, exhaust air systems)
  • Wide viscosity range up to 10,000,000 mPa*s
  • Also suitable for melting difficult-to-process drummed adhesives
  • Sensor technology for barrel detection
  • Drum collars for cardboard drums
  • Drum retainer and drum centring for reliable positioning during the process
  • Quick-change drum ejector
  • Roller conveyor for simple drum logistics
  • Automated drum aeration
  • Intelligent drum plunger control
  • Shorter drum change times

  • Stainless steel CIP-capable version available to comply with food and pharmaceutical standards

„Our drum melters enable virtually residue-free consumption, even with highly viscous liquids and adhesives. The systems are equipped with an energy-saving, automated control system. For maximum efficiency and safety in almost every industry that uses adhesives and sealants, such as the automotive, construction, wood, furniture, textile, film, paper, cable, chemical and pharmaceutical industries.”

Drum melters for different industries

Our drum melters are considered by many satisfied customers to be the best on the market and are used in these industries worldwide:

  • Automotive industry
  • Textile industry
  • Wood and furniture industry
  • Paper/film industry

  • Labelling and marking industry

  • General mechanical engineering
  • Building industry
  • Chemical industry

  • Pharmaceutical industry

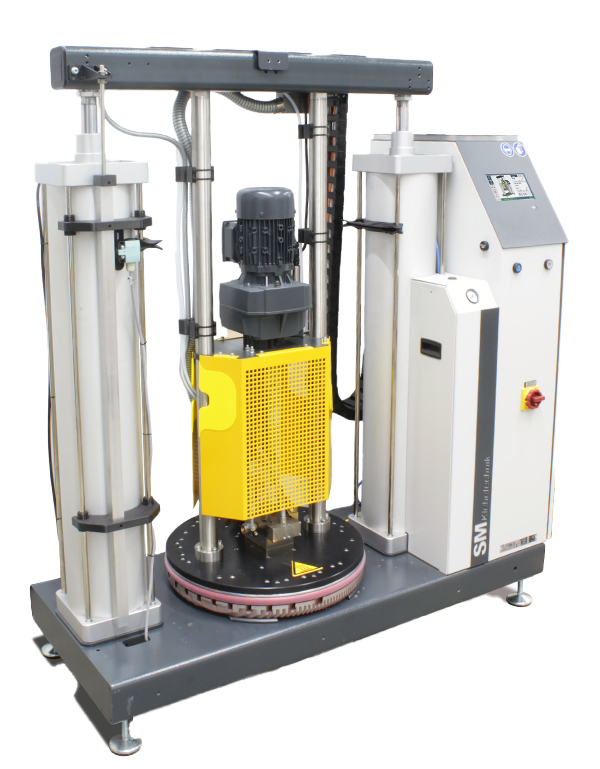

DOWNLOAD DATA SHEET AS PDF DRUM MELTER GX71 FlexControl Heated drum melter with innovative “FlexControl” system, automated air relief and seamless plate-seal to process hotmelt-adhesives and sealants from 200 litre drums. DOWNLOAD DATA SHEET AS PDF DRUM MELTER GX21 FlexControl Heated drum melter with innovative “FlexControl” system, automated air relief and seamless plate-seal to process hotmelt-adhesives and sealants from 20 kg / 5 Gal. hobbocks with volumetric metering pump rates. DOWNLOAD DATA SHEET AS PDF DRUM EMPTYING SYSTEM – GX7611 Heated drum emptying system with sealless immersion plate for removing low-viscosity thermoplastics and liquids from 200-litre drums. DOWNLOAD DATA SHEET AS PDF DRUM MELTER FOR 200-LITRE DRUMS – GX7882 Heated high-performance drum melter with automatic air relief and seamless melting plate seal for the application of viscous hot-melt adhesives and sealants from smooth-walled 200-litre drums using a screw pump.

Drum melters – customised to meet your requirements

We customise our drum melters to meet your specific requirements profile based on the properties of the materials that you process. This is made possible by a variety of different pumps (e.g. gear pumps, progressive cavity screw pumps, scoop piston pumps) and melting plates. This means you can be sure that your new SM Klebetechnik drum melters will meet your production requirements with maximum precision.
Kompakter Hotmelt Beschichtungsstand

Hotmelt Beschichtungs- und Kaschieranlagen

für Glasfaserfolie in Modulbauweise zum Hotmelt Sprühauftrag über Mehrmodulauftragskopf. Die Module sind in Sektionen zu- und abschaltbar, zur Generierung verschiedener Auftragsbreiten und Auftragsbilder. Optional: Streckensteuerung. Materialbreite 1250mm, Auftragsbreiten und Auftragsbilder. Optional: Streckensteuerung. Materialbreite 1250mm,

Komplexe PUR Beschichtungsanlage

zur Beschichtung eines 2300 mm breiten Textil-Schaumverbundes
über eine Breitschlitzdüse. Mit Doppelabwicklerstation, Kühlung, Warenspeicher und Aufwickler mit Schneideeinrichtung

Hotmelt Beschichtungsanlage

mit Breitschlitzdüse zur PUR Beschichtung von bis zu 1000 mm breiten TPO oder PVC Interiorfolien (Automotiv)

Four good reasons in favour of SM Klebetechnik drum melting systems

01.

You benefit from our knowledge and expertise.

Our experts will provide you with detailed advice to ensure that your new drum melter matches your requirements perfectly.

02.

You can be assured of proven reliability.

You can test our systems with your own materials at our in-house R&D technical centre.

03.

You receive German quality.

Our high-performance drum melters are manufactured in Germany with the utmost precision and care.

04.

You enjoy excellent service.

At SM Klebetechnik, you benefit from quick response times, a repair service and attractive maintenance contracts, among other things. We are on call for you 24/7 worldwide.

Three steps to your new drum melters

Vereinbaren Sie einen Beratungstermin Icon

Contact us for an appointment

Call us on +49 (0) 24 52 / 91 72-0 or write to us using the contact form – we will be happy to advise you at length!

Testen Sie unsere Breitschlitzdüse Icon

Test the drum melters

At our in-house R&D technical centre, you can test the drum melters with your materials.
Erzielen Sie dauerhafte Verklebungen Icon

Benefit from the ease of use

When using your high-performance SM Klebetechnik melting systems, you will notice how easy and intuitive the systems are to operate.

Would you like to find out more? Gain an overview of the high-performance SM Klebetechnik drum melters here.

FAQs about our drum melters

The low-maintenance, energy- and cost-efficient SM Klebetechnik drum melters feature above-average melting and conveying performance as well as low residual material in the drum. The drum melters are suitable for different drum sizes and formats, e.g. for steel, cardboard and corrugated drums. When preparing the drum for use, employees receive all the relevant information needed to reduce changeover times.

The unique SM Klebetechnik drum melters enable hot melt adhesives to be used with the highest melting and conveying capacity on the market. Particular highlights include the aeration/deaeration sensor for automatic ventilation, the precise fill level thanks to a distance measuring system and the very low residual material remaining in the drum. Output can be configured individually, whether for single, tandem, triple or fourfold operation.

The SM Klebetechnik high-performance and energy-efficient drum melters, equipment and systems are used worldwide in the following industries: automotive (vehicle components, PUR processing), mechanical engineering, construction (adhesive/sealant processing) and in the paper, wood, film, label, textile, chemical and pharmaceutical industries (dosing, mixing and filling processes). Also for processing raw materials, filling and dosing oils, waxes, resins and fats.

At SM Klebetechnik, you benefit not only from excellent systems and melting equipment but also from first-class, flexible and fast service. Our service team is available whenever you need help – even if your production site is located far away.

We offer telephone and online support, fast response times and a repair service at our factory in Heinsberg or at your own plant. With SM Klebetechnik, you can also rely on remote maintenance and diagnostics via a VPN module for trouble-free operation as well as local maintenance contracts. You also benefit from the swift availability of spare parts, a delivery and collection service and rental equipment to bridge the gap and keep your production up and running. We are also your experts in maintenance and operator training.

The lifting unit moves the heated melting or follower plate vertically into the drum and, once the drum has been emptied, lifts it out again. During operation, it generates the required contact pressure between the melting plate and the material surface. This allows the melted medium to be fed reliably to the pump inlet. The coordination of lifting speed, contact pressure, melting capacity and pump delivery rate is crucial for achieving a consistent material flow.

The choice of lifting unit depends on the required pressing force, the desired level of control, cycle time and the available operating media. SM Klebetechnik drum melters can be equipped with pneumatic, hydraulic or electric lifting systems. In their standard configuration, the GX71 FlexControl and GX76 use pneumatic cylinders to move the heated follower plate in a controlled manner into the 200-litre drum.

The melting capacity indicates how much solid or highly viscous material the heated follower plate can melt per unit of time, usually specified in kg/h. The delivery rate, on the other hand, describes the amount of material supplied by the pump to the downstream process. Both parameters must be precisely matched to prevent material starvation at the pump and avoid unnecessary thermal stress. Depending on the medium, the GX76 achieves a melting capacity of up to 600 kg/h. The configurable delivery rate ranges from 5 to 600 kg/h.

The choice of pump primarily depends on the material viscosity, temperature behaviour, required delivery rate, pressure requirements and desired dosing accuracy. SM Klebetechnik drum melters can be equipped with gear pumps, twin-screw pumps, piston pumps, diaphragm pumps or double-pump systems. Gear pumps are particularly suitable for uniform volumetric pumping and provide precise, continuous material supply. Twin-screw pumps are designed for highly uniform, low-pulsation pumping and can offer advantages when processing highly viscous media. Piston pumps can generate pressures of up to 300 bar and are primarily used when materials need to be pumped against higher flow resistance. Diaphragm pumps mechanically separate the drive system from the medium and can be used for special, sensitive, chemically demanding or abrasive applications. Double-pump systems can provide higher delivery rates, redundant material supply or the parallel feeding of multiple consumers, depending on their configuration.

The residual amount depends largely on the geometry of the melting plate, the viscosity of the medium and the design of the drum seal. With a smooth Slim-Plate, a residual amount of approximately 0.5 kg can be achieved in 200-litre systems. This configuration is particularly suitable for low-viscosity adhesives and sealants and enables the drum to be emptied almost completely.

As the rib height increases, the available melting surface increases and therefore also the potential melting capacity. At the same time, however, the residual amount increases. For the Slim-Plate, the residual amount is approximately 2.5 kg with 26 mm ribs and approximately 3.8 kg with 40 mm ribs. The 26 mm version provides a balanced combination of high melting capacity and low residual material. The 40 mm version is designed for maximum melting capacity and for processing highly viscous materials with viscosities of up to 10,000 Pa·s.

The automatic venting system removes trapped air from beneath the melting plate and from the pump inlet area. This reduces the risk of interruptions in material pumping, pressure fluctuations and air inclusions in the material flow. The GX71 FlexControl and GX76 feature fully automatic venting of the underside of the melting plate and the pump. This supports a stable volumetric pumping process, particularly after drum changes or during system start-up.

Pressure control stabilises the material pressure between the delivery pump and the downstream consumer. The GX76 features electronic pressure control. The GX71 FlexControl can be equipped with electronic pressure control, a mechanical overpressure protection system and a pressure sensor with Performance Level “c”. This allows pump operation to be adapted to the process pressure while protecting the system against impermissible pressure conditions. The specific configuration depends on the material, hose system, delivery rate and connected application system.

For reproducible process control, drum melters can be equipped with process data logging, fill-level monitoring, flow-rate measurement and medium temperature monitoring. The GX76 offers millimetre-precise fill-level monitoring with programmable threshold switching. The GX71 FlexControl additionally provides recipe management, an operating-hours counter, user management and recipe storage via USB. These functions enable operating conditions, material consumption and other process-relevant parameters to be monitored and documented systematically, helping to improve process reliability and reproducibility.

About SM Klebetechnik

SM Klebetechnik is an owner-managed, medium-sized company active globally in the development, production and sale of high-quality machine and system technology for industrial adhesive processing.

We offer our customers high-performance drum melters and application systems, series equipment and special machinery that ensure efficient and sustainable adhesive joining processes.

At our in-house R&D technical centre, our customers can test the drum-melting systems and equipment in practice with their own adhesives and sealants in accordance with their specific requirements.
